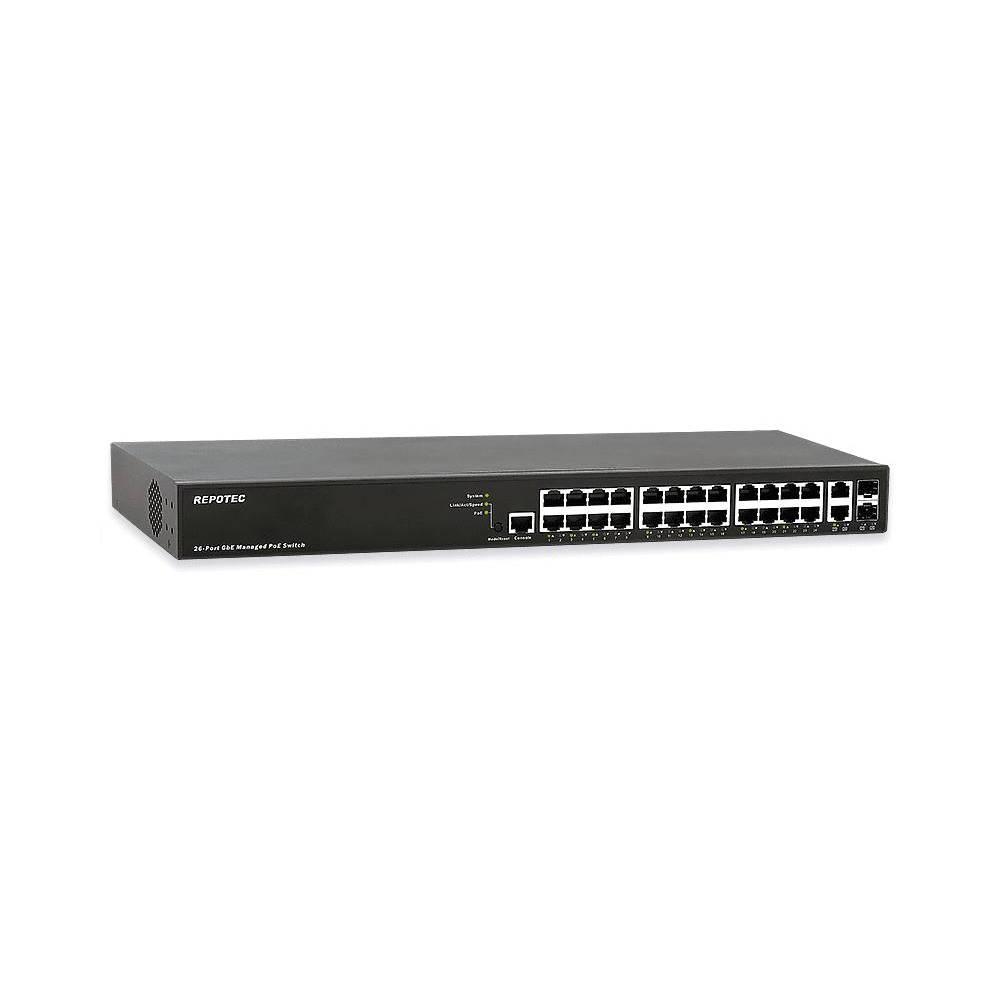

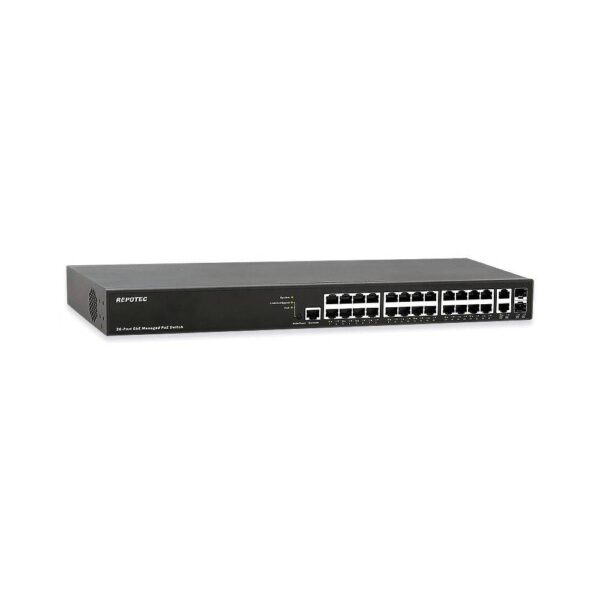

Switch 19 polegadas, 24P 10/100/1000 PoE 370W + 2 Slot SFP, com Gestão (RP-PG2626I(F)) 2040202020

Switch 19 polegadas, 24P 10/100/1000 PoE 370W 2 Slot SFP, com Gestão (RP-PG2626I(F)) 2040202020

Múltiplos de Compra: 1

Classe: D

EAN: 4712702796391

Consultar todas as características no Catálogo: ➡️Aqui  — Pesquise por referência para uma localização mais simples e rápida.

Alguns artigos estão disponíveis apenas por encomenda. Por favor, não pague a sua encomenda antes da nossa confirmação de stock.

Standards  IEEE 802.3/3u 10Base-T, 100Base-TX Ethernet

 IEEE 802.3ab 1000Base-T Ethernet

 IEEE 802.3z 1000Base-X Ethernet

 IEEE 802.3x Flow Control capability

 IEEE802.3at/af PoE standard

 IEEE802.3az Energy Efficient Ethernet

Interface  Port 1 to 24: RJ-45 10/100/1000Mbps with 802.3af/at PoE, auto MDI/X

 Port 25 to 26: RJ45/SFP(100/1000Mbps) combo

 RJ45 Console port

 Reset Button

Forwarding Capacity  14.88 Mpps

Switching Capacity  20 Gbps

Jumbo frames  9216 Bytes

MAC Table  8K MAC addresses

Layer 2 Switching

Spanning Tree Protocol

(STP)

 Standard Spanning Tree 802.1d

 Rapid Spanning Tree (RSTP) 802.1w

 Multiple Spanning Tree (MSTP) 802.1s

Trunking  Link Aggregation Control Protocol (LACP) IEEE 802.3ad

 Up to 13 groups

 Up to 4 ports per group

VLAN  Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

 Port-based VLAN

 802.1Q tag-based VLAN

 MAC-based VLAN

 Management VLAN

 Private VLAN Edge (PVE)

 Q-in-Q (double tag) VLAN

 Voice VLAN

 GARP VLAN Registration Protocol (GVRP)

DHCP Relay  Relay of DHCP traffic to DHCP server in different VLAN.

 Works with DHCP Option 82

IGMP v1/v2/v3 snooping  IGMP limits bandwidth-intensive multicast traffic to only the requesters

 Supports 1024 multicast groups

IGMP Querier  IGMP querier is used to support a Layer 2 multicast domain of

snooping switches in the absence of a multicast router

IGMP Proxy  IGMP snooping with proxy reporting or report suppression actively

filters IGMP packets in order to reduce load on the multicast router

MLD v1/v2 snooping  Deliver IPv6 multicast packets only to the required receivers

Layer 3 Switching

IPv4 Static Routing  IPv4 Unicast: Static routing

IPv6 Static Routing  IPv6 Unicast: Static routing

Security

Secure Shell (SSH)  SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are

supported

Secure Sockets Layer

(SSL)

 SSL encrypts the http traffic, allowing advanced secure access to the

browser-based management GUI in the switch

IEEE 802.1X  IEEE802.1X: RADIUS authentication, authorization and accounting,

MD5 hash, guest VLAN , single/multiple host mode and single/multiple

sessions

 Supports IGMP-RADIUS based 802.1X

 Dynamic VLAN assignment

Layer 2 Isolation Private

VLAN Edge (PVE)

 PVE (also knows as protected ports) provides L2 isolation between

clients in the same VLAN. Supports multiple uplinks

Port Security  Locks MAC addresses to ports, and limits the number of learned MAC

address

IP Source Guard  Prevents illegal IP address from accessing to specific port in the

switch

RADIUS/ TACACS  Supports RADIUS and TACACS authentication. Switch as a client

Storm control  Prevents traffic on a LAN from being disrupted by a broadcast,

multicast, or unicast storm on a port

DHCP Snooping  A feature acts as a firewall between untrusted hosts and trusted DHCP

servers

ACLs  Supports up to 256 entries. Drop or rate limitation based on:

 Source and destination MAC, VLAN ID or IP address, protocol, port

 Differentiated services code point (DSCP) / IP precedence

 TCP/ UDP source and destination ports

 802.1p priority

 Ethernet type

 Internet Control Message Protocol (ICMP) packets

 TCP flag

Quality of Service

Hardware Queue  Support 8 hardware queues

Scheduling  Strict priority and weighted round-robin (WRR)

 Queue assignment based on DSCP and class of service

Classification  Port based

 802.1p VLAN priority based

 IPv4/IPv6 precedence / DSCP based

 Differentiated Services (DiffServ)

 Classification and re-marking ACLs

Rate Limiting  Ingress policer

 Egress shaping and rate control

 Per port

Management

DHCP Server  Support DHCP server to assign IP to DHCP clients

Remote Monitoring

(RMON)

 Embedded RMON agent supports RMON groups 1,2,3,9 (history,

statistics, alarms, and events) for enhanced traffic management,

monitoring and analysis

Port mirroring  Traffic on a port can be mirrored to another port for analysis with a

network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports)

ports can be mirrored to single destination port. A single session is

supported

UPnP  The Universal Plug and Play Forum, an industry group of companies

working to enable device-to-device interoperability by promoting

Universal Plug and Play

s-Flow  The industry standard for monitoring high speed switched networks. It

gives complete visibility into the use of networks enabling

performance optimization, accounting/billing for usage, and defense

against security threats

IEEE 802.1ab (LLDP)  Used by network devices for advertising their identities, capabilities,

and neighbors on an IEEE 802ab local area network

 Support LLDP-MED extensions

Web GUI Interface  Built-in switch configuration utility for browser-based device

configuration

CLI  For users to configure/manage switches in command line modes

Dual Image  Independent primary and secondary images for backup while

upgrading

SNMP  SNMP version1, 2c and 3 with support for traps, and SNMP version 3

user-based security model (USM)

Firmware Upgrade  Web browser upgrade (HTTP/ HTTPs) and TFTP

 Upgrade through console port as well

NTP  Network Time Protocol (NTP) is a networking protocol for clock

synchronization between computer systems over packet-switched

Other Management  HTTP/HTTPs; SSH

 DHCP Client/ DHCPv6 Client

 Cable Diagnostics

 Ping

 Syslog

 Telnet Client

 IPv6 Management

Power over Ethernet (PoE)

Port Configuration  Supports per port PoE configuration function

PoE Scheduling  Supports per port PoE scheduling to turn on/off the PoE devices (PDs)

Auto-checking  Check the link status of PDs. Reboot PDs if there is no responses

Power Delay  The switch provides power to the PDs based on delay time when PoE

switch boots up, in order to protect switch from misuse of the PDs

PoE Power Budget  370 Watts

Power Supply  Internal Power supply 100~240VAC, 50/60 Hz

Environment  Operating temperature: 0°C to 45°C

 Storage Temperature: -20 to 70°C

 Operating Humidity: 10% to 90% (Non-Condensing)

Dimension  442 x 44 x 211mm (WxHxD)

Certification  FCC, CE

Ordering information

RP-PG2626IF 24-P Gigabit 2-TP/SFP(100/1G) combo L2 Managed PoE Switch (370W)
