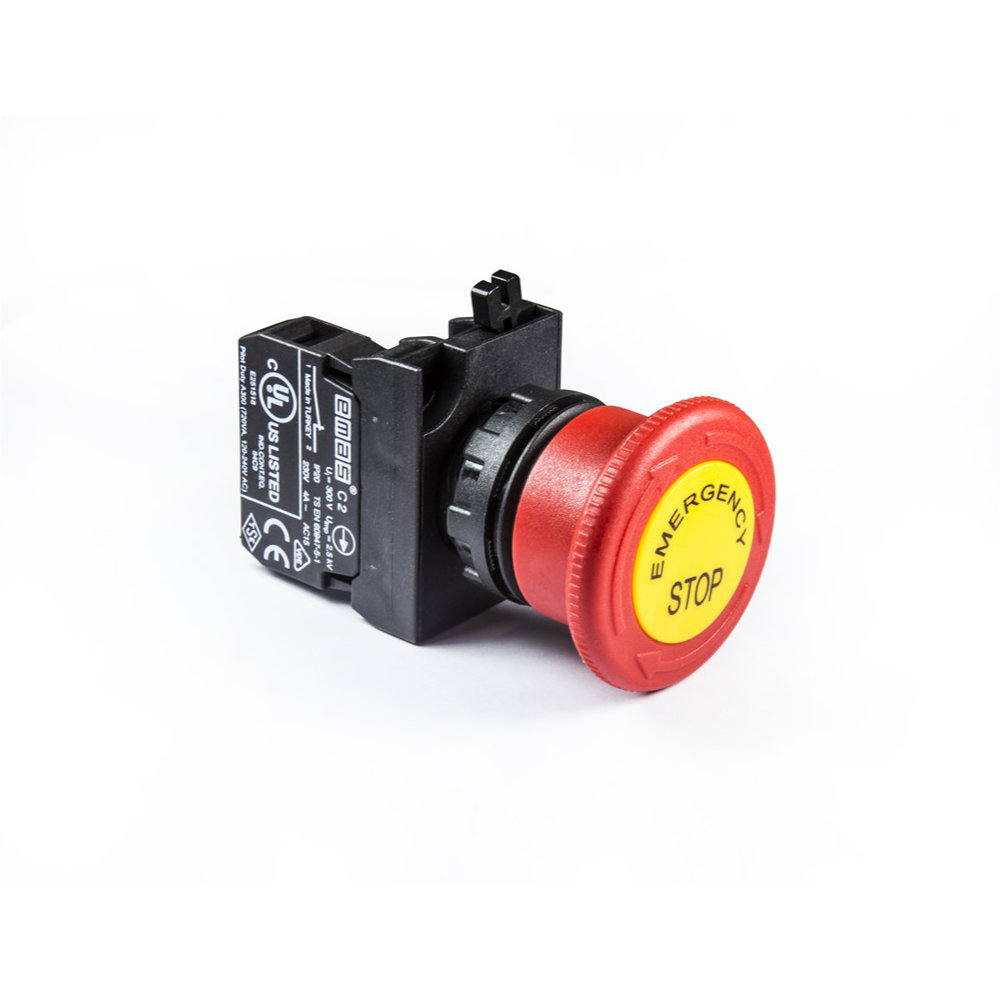

CP200EE Botão de Emergência Rot. 40MM 1NF c/etiq Verm
REF.: CP200EE | Catálogo Geral: EMAS
__
Blocos de contato V0 PA6.6 não inflamáveis
Disponibilidade de vários blocos de contato de iluminação
Variedade de produtos para todas as áreas de aplicação
Proteção IP65 da parte frontal
_
Especificações:
Product: Control Unit
Model: Emergency
Type: Turn to Release with Label
Contact: 1NC
Color: Red
Dia: 22 mm
Head Dia: 40 mm
Current (Ie): 4 A (230V AC)
Usage Category: AC 15
Mechanical Life (Min Qty): 500000
Electrical Life (Min Qty): 100000
Operating Frequency (On-Off/Hour): Mech. 1200 Elec. 1200
Insulation Voltage (Ui): 300V
Impulse Withstand Voltage (Uimp): 2.5 kV
Dielectric Strength (Body-Contact): 2.500V AC
Dielectric Strength (Contact-Contact): 1.500V AC
Isolation Resistance: 10 MΩ min. (500V DC)
Operating Temperature: -15 / + 65 °C
Pollution Degree: 3
Protection Degree: IP65
Contact Material: AgNi
Cable Section: 1.5-2.5 mm2
Screw Torque: 1,5 Nm
Short Circuit Breaking Capacity (Ics): 1 kA
Production Time: 31.12.1899 00:00:00
Serial: CP Series Plastic
+ Info: Site do Fabricante
